Supercapacitors (supercaps) are one of the most misunderstood “storage” technologies in DIY off-grid work. They can dump huge current and recharge fast — which makes them perfect for smoothing short surges and protecting batteries from abuse. But they usually store very little energy compared to batteries. This guide shows what supercaps are good for, how to size them honestly, and how to build a safe experiment with balancing and protection.
Batteries are good at storing lots of energy. Supercapacitors are good at moving energy quickly. That difference matters in off-grid systems because many real-world problems are short, sharp events: inrush current, motor start surges, momentary load spikes, and rapid charge acceptance from experimental generators.
If you’ve ever watched an inverter complain when a fridge starts, or watched voltage sag when a pump kicks on, you’ve seen “power problems.” Supercaps can help with those — but only if you design the system around their limits.
For the core concepts behind power vs energy, start with solar basics.
If your goal is energy storage education rather than buffering, compare with flywheel storage and gravity batteries.
You can think of a capacitor as an “electric spring.” Push charge in and voltage rises. Pull charge out and voltage falls. Batteries, in contrast, try to hold roughly the same voltage across a wide range of state of charge.
A supercap bank does not deliver a flat voltage like a battery. Its voltage changes directly with how much charge is stored. That means you often need a DC-DC converter if your load expects a stable voltage.
Supercaps are popular because ESR can be very low, enabling high current. But even small resistance at high current causes heat, and it adds to voltage drop during surges.
The stored energy in a capacitor is:
Where E is energy (joules), C is capacitance (farads), and V is voltage. To convert joules to watt-hours, divide by 3600.
Suppose you build a 12V-ish bank using supercaps and you end up with an effective capacitance of 100F at 16V max. At 16V, energy is 0.5 × 100 × 16² = 12,800J ≈ 3.6Wh.
That’s not a typo: a bank that feels “big” can still store single-digit watt-hours. The benefit is not energy density — it’s fast charge/discharge and surge current capability.
If your load requires at least 12V, and your bank starts at 16V and droops to 12V, your usable energy is the difference: ½ C (Vstart² − Vend²). This is why regulating voltage (buck/boost) can increase usable energy by letting you use a wider voltage swing.
Start with a small, controlled demo. Your goal is to prove you understand precharge, balancing, and measurement. Then scale.
This teaches the most important lesson: voltage changes constantly, and current can be very large.
Series connections increase voltage rating but reduce effective capacitance. This is where balancing becomes mandatory.
Once you can charge/discharge safely, you can use a supercap bank as a DC bus buffer. Common examples:
In a series string, each cell should share voltage evenly. In practice, leakage currents differ, so one cell can drift higher and exceed its voltage rating. Overvoltage can permanently damage a cell.
Passive balancing uses resistors across each cell. It’s simple and often adequate for small DIY banks, but it wastes energy as heat continuously.
Active balancers move charge between cells. They reduce standby loss and can be better for larger banks, but they add components and failure modes. For DIY learning, passive balancing is often enough.
An empty supercap bank looks like a short circuit. If you connect it directly to a battery, the inrush current can be enormous — limited only by wiring resistance and ESR.
This is also why a disconnect and fusing matter. If you want a practical checklist, use wiring decisions and fuse/breaker sizing.

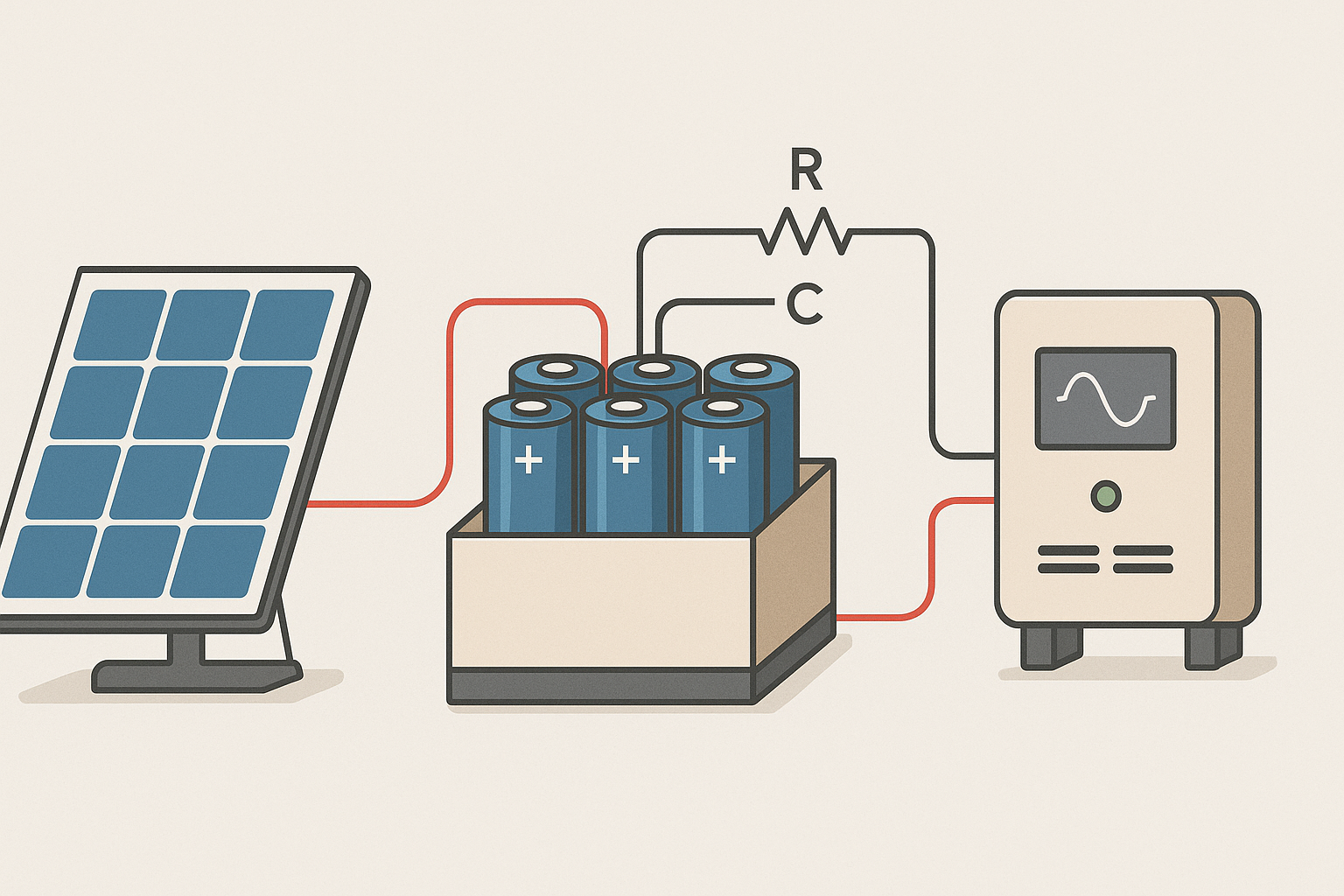

The most realistic use of supercaps in a solar setup is as a buffer in front of a battery. Batteries don’t love sharp current spikes; supercaps do. A good buffer design can reduce stress on batteries and stabilize a DC bus.
In both cases, the supercaps should not be treated as “just another battery.” Their voltage droops quickly, so a converter and a clear allowable voltage range are what turn a supercap bank from a science demo into a useful buffer.
For system-level context, see solar components and solar system sizing.
Supercap banks can deliver extremely high current into a short. That can melt tools, start fires, and damage batteries. Always fuse near energy sources and keep conductors protected.
Overvoltage can damage cells and create venting hazards. Use balancing and conservative voltage limits.
If you salvage cells from unknown sources, test them individually for leakage and capacity behavior first. Mixed cell health is a recipe for imbalance.
That’s normal. As voltage rises, current-limited chargers deliver less current, and the voltage difference driving current shrinks.
Usually no. For hours of runtime, batteries are far more energy-dense and cost-effective. Supercaps shine as buffers for short surges and rapid charge/discharge events.
Because capacitors don’t regulate voltage like batteries. As charge is removed, voltage falls. A DC-DC converter can make that voltage swing more usable.
Yes. Without balancing, one cell can exceed its voltage rating even if the total bank voltage looks safe.
High current. Treat the bank like a power tool: fuse it, precharge it, and keep wiring protected.
Buffering a short burst source like a hand-crank generator or a pedal generator so your output is smoother and your measurements are easier.
