DIY off-grid energy experiments

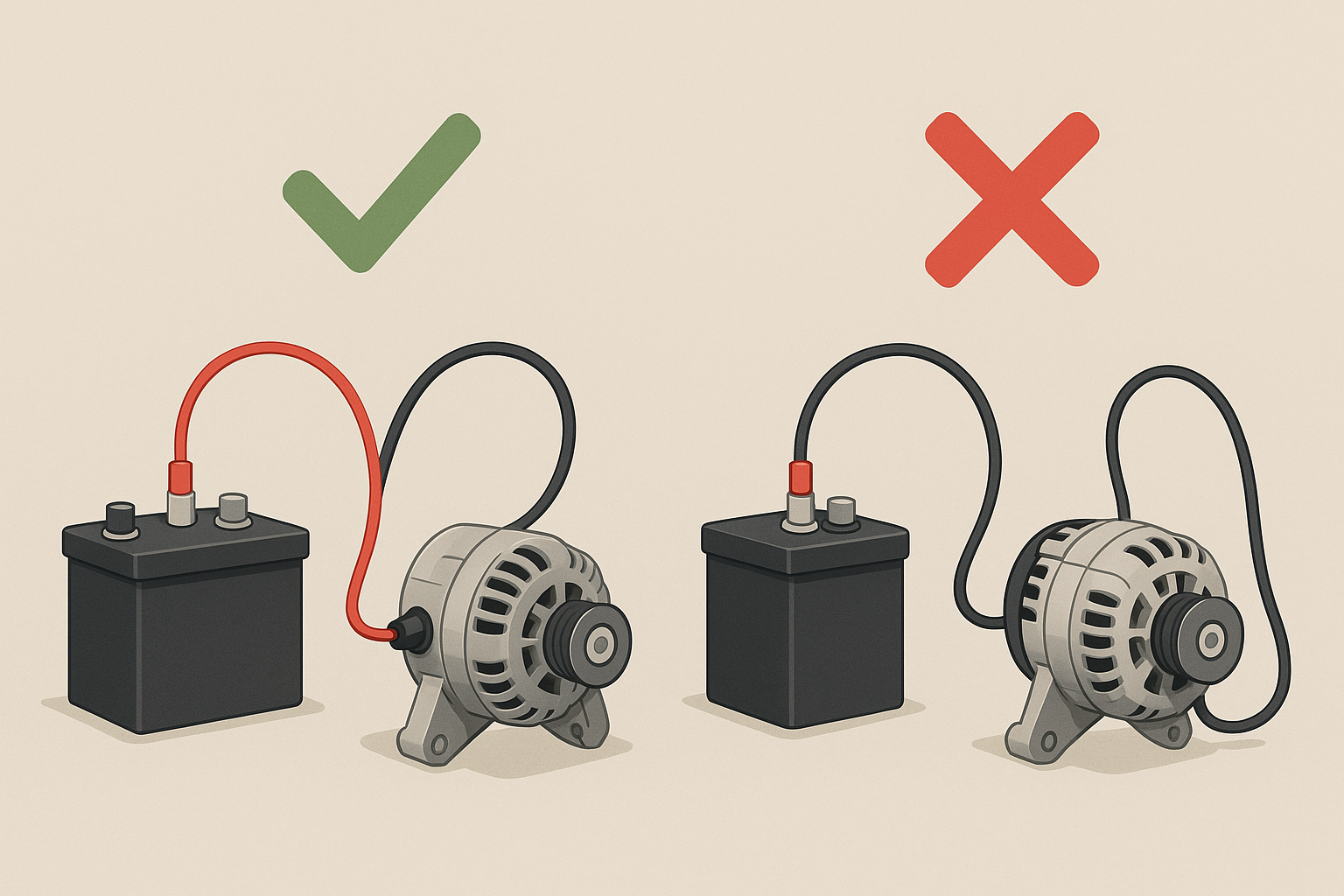

Car alternators are everywhere, they look rugged, and they’re labeled for big amps — so it’s easy to assume they’re perfect for DIY off-grid power. Then you bolt one to a frame, spin it with a drill or a bike, see “14V” on a meter, connect a battery… and nothing useful happens. This guide explains the gap between the myth and reality, and shows practical setups that can actually charge a battery safely.
A battery charger has one job: push current into a battery at the right voltage and in a controlled way. A spinning alternator has a different job: supply electrical power to a car’s loads and keep a starting battery topped up while an engine is already providing plenty of mechanical power.
That mismatch creates two classic DIY traps:
If you want a refresher on watts vs watt-hours (and why “how long” matters more than “how high”), read solar basics and use the battery capacity calculator to ground your expectations.
Most modern automotive alternators are three-phase AC machines with a built-in rectifier and voltage regulation. You can use them in DIY projects, but you need to understand three pieces: the rotating field, the stator, and the regulator/rectifier.
Many alternators use an electromagnet rotor. That means the alternator needs a little electrical power to energize the field before it can produce much output. In a car, this is handled automatically by the electrical system.
In DIY setups, the field issue shows up as: “It barely outputs anything unless I do something special.” That “something special” is supplying field current in a correct, controlled way.
The alternator’s stator windings generate three-phase AC. Inside the alternator, a diode bridge converts that AC to DC for the vehicle’s 12V electrical system. This conversion has losses (diodes dissipate heat), and those losses matter at high current.
Alternator “voltage regulation” usually works by adjusting the rotor field current. Higher field current strengthens the magnetic field and increases output (until the machine saturates or heat limits are reached). Lower field current reduces output.
In a car, the regulator is trying to keep system voltage around a target value while loads change. In a DIY rig, your goal is usually: “produce stable charging into a battery without overheating anything.”
In a vehicle, the alternator pulley is smaller than the crank pulley, so the alternator spins faster than the engine. At highway RPM, alternators can spin at several thousand RPM.
Many DIY drives (bikes, slow turbines, hand cranks) operate at hundreds of RPM. That can be an order of magnitude too low.
The alternator has internal losses and needs a certain operating point before it can produce real current. If you can only reach a “barely charging” point, your current into a battery can be tiny. That’s why “it reads 14V” can still mean “it’s not charging.”
When an alternator is actually producing significant electrical power, it resists rotation. That resistance is torque demand. If your drive source is a bike or a small wind rotor, you may stall or slow down dramatically under load.
Alternators can produce large current — but only when cooled adequately and operating within design limits. In DIY rigs, poor airflow, misalignment, or long high-current runs can overheat the alternator and the wiring.
The easiest way to succeed is to treat an alternator project as a controlled experiment: you need RPM you can sustain, a load you can control, and a safe battery wiring plan.
If your goal is “charging current that matters,” the most practical DIY approach is still an engine turning the alternator. This isn’t “free energy” — it’s just a reliable mechanical power source.
Human power can generate meaningful watts, but it’s limited. If you want a human-powered generator that “works with less drama,” a PMDC motor is often easier than an alternator. Still, alternators can work if you gear them up aggressively and accept modest charging current.
Wind and hydro sources are variable. That variability is what makes alternators tricky in these projects: if the battery fills or wiring disconnects, voltage can spike and the turbine can overspeed.
“Low voltage” does not mean “low risk.” 12V systems can deliver enormous current into a short circuit. If you connect an alternator to a battery without protection, a wiring fault can become a fire quickly.
If you’re unsure about wire size and protection, use: wire size basics, fuse/breaker sizing, and the wiring decisions checklist.
Alternators are designed to operate within a vehicle system. In DIY systems with different wiring, different batteries, and different loads, you may still need a clear charging strategy. If your output is variable or your battery chemistry is sensitive, you may need additional regulation stages.
For the bigger picture of system architecture, see multi-source hybrid charge control.
The most honest way to talk about alternator output is: measure watts under load. But you can also estimate what your drive system could possibly deliver.
A useful mental model is:
Many people can sustain something like 50–150W for meaningful periods. If your alternator and belt drive are 50% efficient end-to-end (often optimistic), you might see 25–75W into a battery when things are tuned well. That can be useful for topping up, but it’s not a whole-house energy plan.
A small engine that can deliver a few hundred watts mechanically can produce useful battery charging current through an alternator. Here, the constraints become heat management, belt alignment, and wiring.
A generator that produces 100W for 1 hour delivers 100Wh. Compare that with your daily load and battery size. If you want a structured way to test and log output, see the “measurement-first” approach in a generator test bench guide.
In most off-grid setups, solar does the heavy lifting because it is simple, predictable, and scales cleanly. An alternator can still be useful as a supplemental charger when:
The clean approach is “battery-first”: alternator charges the battery through appropriate protection and control, and your loads run from the battery through your normal system components.
Belt drives can grab clothing, hair, and fingers. Guard moving parts and keep a clear “no hands” zone while running.
A short circuit on a battery can melt tools and start fires. Fuse close to the battery, use proper lugs, and avoid “temporary” wiring that becomes permanent.
Alternator regulation is not the same as a modern multi-stage charger designed for specific chemistries. If you’re charging expensive lithium batteries, use a charging approach designed for that battery system.
Sometimes, but not always safely or effectively. You still need proper fusing near the battery, correct wire size, a disconnect, and a plan for controlling output. Many DIY failures come from low RPM (no real current) or poor wiring (voltage drop and heat).
Many alternators require field excitation because the rotor is an electromagnet. In a vehicle, this happens automatically. In DIY setups, lack of excitation is a common reason for weak output.
It depends on the alternator design, battery voltage, and load, but alternators are generally happiest at high RPM. Plan for a pulley ratio that gives the alternator a few thousand RPM when your drive source is at its comfortable speed.
For many DIY low-speed sources, a PMDC motor is easier to use because it can produce usable voltage at lower RPM and doesn’t need field excitation. Alternators can still work well when you can spin them fast and keep them cool.
Build a measurement-first rig: stable mounting, tachometer, and a controllable load. Prove you can generate stable watts under load before you integrate batteries.
