Key takeaways
- Higher voltage means lower current for the same power, which can simplify wiring.
- 12V is common for smaller systems and many RV/van builds.
- 24V and 48V are often better for larger loads and longer cable runs.
Sizing comparison

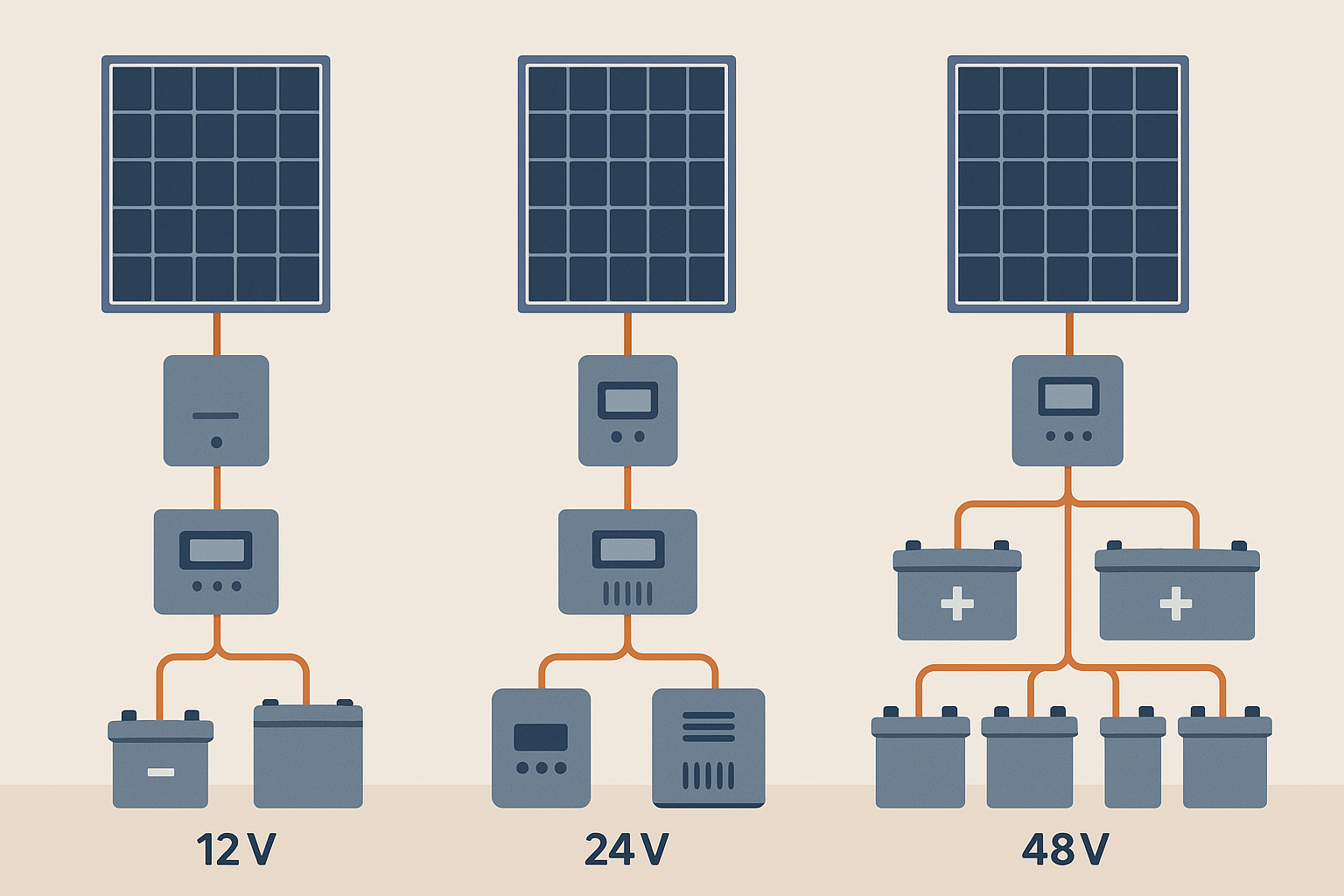

12V vs 24V vs 48V solar systems
Your system voltage affects current, wire size, inverter draw, and how easy it is to scale. This comparison explains the practical differences and which voltage tends to fit common solar setups.
Quick comparison table
| Factor | 12V | 24V | 48V |
|---|---|---|---|
| Best fit | Small systems, RV basics | Mid-size off-grid | Large off-grid / high power |
| Current at 1,000W (rough) | High | Medium | Lower |
| Wiring burden | Heavier at high power | Moderate | Often easiest for big loads |
| Scaling | Limited sooner | More headroom | Most headroom |
Why voltage matters: current and wiring
For the same power, lower voltage requires higher current. Higher current typically means thicker cables, larger fuses/breakers, and more heat loss if wiring is undersized.
Current (amps) ≈ Watts ÷ Volts
Example: 1,200W at 12V draws roughly 100A before considering inverter losses. At 24V it’s about 50A, and at 48V about 25A.
Battery bank considerations
Your battery bank voltage sets the system voltage for most off-grid builds. Higher voltage banks use fewer parallel strings, which can improve balance and reduce current in the main battery cables.
- 12V: simple, but currents get high quickly above 1,000W.
- 24V: a good middle ground for moderate systems.
- 48V: fewer amps for big loads and large inverters.
Use the battery capacity calculator to estimate bank size before you commit to a voltage.
Charge controller sizing impact
At lower voltage, the charge controller must handle more current for the same array wattage. That can push you toward larger, more expensive controllers.
Higher battery voltage often reduces controller current requirements and wiring size.
Leave margin for heat derating, since controller output can drop at high temperatures.
Cost tradeoff summary
Higher voltage can reduce wiring and protection cost, but may increase inverter and controller cost. The best value depends on system size and expansion plans for most DIY systems overall.
Budget for DC-DC converters if you keep a 12V accessory system on higher voltages.
Quick summary
Small systems with short runs usually fit 12V. Medium systems often benefit from 24V. Large systems and long runs typically favor 48V.
Common use cases
12V systems
Often used when loads are modest and many devices are naturally 12V, which is common in RVs, vans, and small cabins.
24V systems
Useful when you need more power and want to reduce current without jumping to larger inverters and higher-voltage charge controllers.
48V systems
Common in higher-power off-grid systems where current management, efficiency, and scalability matter most.
Inverter and charge controller availability
Component availability can steer your voltage choice. Many small inverters and DC appliances are 12V. Larger inverters and MPPT controllers are commonly available in 24V and 48V models.
Check input voltage limits for your charge controller, especially if you plan to wire panels in series.
DC appliance compatibility
Most RV and small cabin devices are 12V. If you choose 24V or 48V, you may need DC-DC converters to run 12V loads.
Converters add cost and complexity, but they can be a clean way to keep a small 12V subsystem.
Battery bank layout considerations
Higher-voltage banks often use more series connections, which makes balancing and maintenance more important. Keep parallel strings to a minimum and use matched cables to avoid uneven currents.
For lithium, a 48V battery with an integrated BMS can simplify wiring. For lead-acid, more series connections mean more individual batteries to monitor and equalize.
If you are not comfortable managing series strings, it may be worth choosing a voltage that matches off-the-shelf battery modules.
Plan physical space and ventilation, because higher-voltage banks can require multiple enclosures.
Keep battery interconnects the same length and gauge so current sharing stays balanced across the bank.
When you add DC-DC converters for 12V loads, include their losses in your energy budget.
Example: same load, different voltage
A 1,500W inverter load draws about 125A at 12V and about 62A at 24V. That difference affects cable size and protection hardware.
This is why higher voltage becomes more attractive as loads grow.
Efficiency and losses
Higher voltage reduces current, which lowers resistive losses in wires and connections. That means less heat, fewer voltage drops, and easier cable sizing.
However, higher-voltage systems can be less forgiving of wiring mistakes and require components rated for the higher voltage. Balance efficiency with safety and simplicity.
Safety and protection
Regardless of voltage, use properly sized fuses or breakers, and keep cables as short as practical. High current can cause heat and fire risk, while higher voltage can increase shock risk. Follow local code requirements.
If you are unsure, consult a licensed electrician or installer.
Decision checklist
- Daily energy use: larger loads usually push you toward 24V or 48V.
- Inverter size: bigger inverters tend to be easier to run at higher voltage.
- Wire lengths: longer runs favor higher voltage to reduce voltage drop.
- Existing appliances: if you rely on 12V gear, staying at 12V can simplify things.
- Future expansion: higher voltage gives you more headroom later.
When in doubt
Start with the loads you actually run and the inverter size you need. If you are under 1,000W and using short cable runs, 12V is often fine. If you are above that, 24V or 48V usually makes wiring easier.
Upgrading voltage later
Moving from 12V to 24V or 48V often requires new batteries, an inverter, and sometimes a new charge controller. It is rarely a simple switch.
If you expect growth, plan your voltage choice early to avoid replacing major components.
Battery bank wiring example
Two 12V batteries in series create a 24V bank. Four 12V batteries can be wired as two series pairs in parallel for more capacity at 24V.
Use balanced wiring to keep current sharing even across parallel strings.
FAQ
Is 24V more efficient than 12V?
Often, yes for higher-power systems because current is lower, which reduces wiring losses and stress on components.
Do I need 48V for an RV?
Most RV builds don’t need it. If you run large inverters and big battery banks, 24V or 48V may become attractive.
Can I mix 12V and 24V devices?
Yes, but it requires proper DC-DC conversion and careful design. Keep it simple if you’re new.
Does system voltage affect solar panel wiring?
It can influence array configuration and controller choices. Always verify your charge controller’s voltage limits.
Can I start at 12V and upgrade later?
Sometimes, but changing voltage often means replacing batteries, inverters, and some wiring. Plan ahead if you expect growth.
