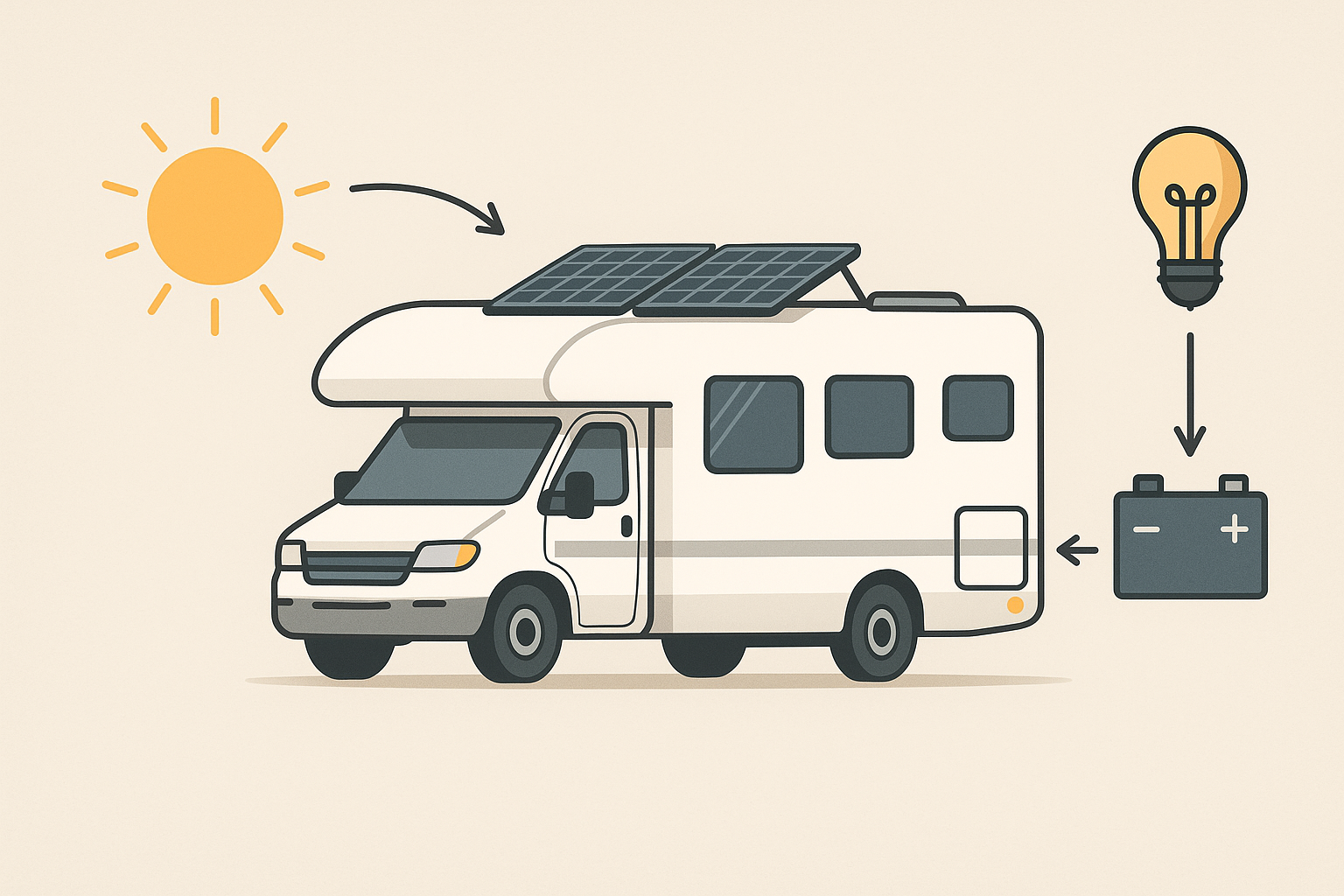

How to size an RV solar system

Key takeaways

• Start with a realistic daily energy estimate (Wh/day) for your RV loads.
• Battery capacity determines how long you can run without sun.
• Panel watts determine how quickly you can refill the battery each day.

Step 1: Estimate your RV daily energy use (Wh/day)

Make a short list of your typical loads (lights, fans, phone/laptop charging, water pump, TV, and any inverter-powered appliances). Then estimate watt-hours:

Watt-hours = Watts × Hours per day

If you’re unsure about a device’s wattage, use its label or a plug-in meter (for AC loads). For DC loads, look for amps and multiply by voltage.

Step 2: Size your RV battery capacity

Pick an autonomy target: how long you want to run without meaningful solar input (hours or a full day). Then estimate the battery energy you need, accounting for depth of discharge (DoD).

Battery Wh ≈ Daily Wh × Days of autonomy ÷ DoD

RV note: if you regularly run high-draw AC devices, plan for inverter losses and short bursts of higher power.

Step 3: Size solar panels for daily refill

Panel sizing depends on how much energy you need to replace each day and your average peak sun hours. A simple estimate is:

Panel watts ≈ Daily Wh ÷ Peak sun hours ÷ Efficiency

Use an efficiency factor like 0.75–0.85 to account for heat, wiring, and charging losses.

Step 4: Choose an inverter (if you need AC power)

An inverter is sized primarily by the maximum AC wattage you’ll run at once, plus starting surges for some devices. If you only run DC loads and USB charging, you may not need a large inverter.

Step 5: Match the charge controller to your array

Choose a controller that supports your array voltage and battery chemistry. MPPT is common in RV builds because it allows higher-voltage panel wiring and more harvest in mixed conditions.

• Input voltage: keep cold-weather panel Voc below the controller’s max rating.
• Output current: size based on array watts ÷ battery voltage with a safety margin.
• Battery profile: confirm settings for lead-acid or lithium.

See MPPT vs PWM for the full comparison.

Roof space, shading, and mounting constraints

RV roofs have limited real estate, plus vents, AC units, and antennas. Build a panel layout first, then confirm the panel wattage you can actually fit.

Partial shading from roof fixtures can reduce output. Consider panel spacing, wire routing, and access for maintenance.

Battery chemistry and weight considerations

Lithium batteries offer more usable energy per pound, which helps when RV weight limits are tight. Lead-acid is cheaper upfront but heavier and needs more capacity for the same usable energy.

Use the battery chemistry comparison to decide which tradeoffs matter most.

Charging sources beyond solar

Many RVs combine solar with shore power or alternator charging. This can reduce the panel size you need, but it requires compatible chargers and careful wiring.

If you camp in shade or winter conditions, plan for a backup charging strategy.

Example sizing snapshot

Example: If your daily use is 2,000 Wh and you want one day of autonomy at 80 percent depth of discharge, the battery target is about 2,500 Wh. With 4 peak sun hours and 0.8 efficiency, panel watts are roughly 625W.

Adjust for roof space and seasonal sun hours.

RV sizing checklist

• List loads: include any inverter appliances.
• Check roof space: panels must physically fit.
• Pick system voltage: 12V is common, 24V for larger setups.
• Plan cable routes: short runs reduce losses.
• Confirm controller limits: especially cold-weather PV voltage.

Inverter usage patterns

Heavy inverter use is the biggest driver of RV system size. If you mainly charge devices and run lights, you can keep the inverter small or skip it entirely.

If you run a microwave or air conditioner, plan for high surge and large battery capacity.

Seasonal and location effects

Peak sun hours vary by location and season. If you travel north or camp in winter, your panel output will drop and you may need more capacity or backup charging.

Backup charging options

Most RVers keep a backup plan for cloudy weeks: shore power, a generator, or alternator charging while driving. Each option changes your sizing target because it reduces how much solar has to cover on its own.

If you rely on alternator charging, confirm wire size and isolation hardware so you do not overload the vehicle electrical system.

Even a small backup charger can shrink the array size you need for long trips.

Battery maintenance reminders

Lead-acid batteries may require periodic checks and ventilation. Lithium batteries need a proper BMS and temperature protection.

Healthy batteries make sizing assumptions more reliable.

Plan ventilation and access so you can inspect terminals safely and periodically.

Easy access saves time during troubleshooting too.

Realistic expansion plan

If you expect to add panels later, choose a controller with headroom and leave roof space. Planning for expansion can save money and rework.

Quick summary

Size the battery for autonomy first, then size panels to refill it daily. Roof space and sun hours are the main constraints.

Common RV sizing scenarios (quick ranges)

These ranges are broad by design. Your actual loads, sun conditions, and roof space determine the final numbers.

FAQ

How many watts of solar do I need for an RV?

Estimate daily Wh first, then divide by peak sun hours and an efficiency factor to get panel watts.

Is it better to buy more panels or more battery?

More battery increases time off-sun; more panels increase daily refill. Most RV builds need a balance of both.

Do I need MPPT on an RV?

MPPT is often worth it if your panel voltage is higher than battery voltage or you want better performance in mixed conditions.

Can RV solar run an air conditioner?

It can, but it typically requires a large battery bank, substantial panel wattage, and a properly sized inverter.

What’s a safe first step if I’m unsure?

Start with your load list and consider a smaller system you can expand later, or consult an RV solar installer.
